Description
Model 900
Model 402
Power rating available

3.5-9.5kw

7-8.5kw
Rated current (For 230V)

20A-45A

30A-40A
Circuit breaker

Earth leak must be installed

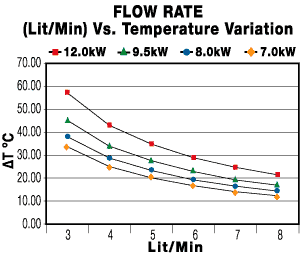

HotWater(L/min) ambient inlet 12℃

8kW - 4L/min @ 42℃

8kW - 4L/min @ 42℃
HotWater(L/min) ambient inlet 12℃

8kW - 3L/min @ 52℃

8kW - 4.5L/min @ 37℃
Rated pressure

0.3-6 bar

0.3-6 bar
Element type

Tubular element

Tubular element
Temperature setting range

Flow of water to control

Flow of water to control
Dimensions HxWxD (mm)

185x300x90

185x300x90
Water connections

1/2" BSP

1/2" BSP
Protection class

IP24

IPX4
Pressure release

Included with water heater

Built in
Limiting value/isolating value

Recommended

Plumbing

Recommend high pressure flexi hose
between fixed plumbing & heater

Flexi hose between
fixed plumbing & heater
Installation requirements

AS/NZS 3350.2.35

AS/NZS 3350.2.35

GENERAL SPECIFICATIONS for INLINE 900
AVAILABLE
Code: INWHLINE 3.5kW / 230v
Code: INWHLINE 5.5kW / 230v
Code: INWHLINE 7kW / 230v
Code: INWHLINE 8kW / 230v
Code: INWHLINE 9.5kW / 230v
Closed Pressure System
The Inline Heater is installed before the valve (tap) and can be below eye level in a convenient position on a wall or inside a vanity unit. Heater features built in safety release valve and temperature heat setting. Accessories not supplied.
Standard pressure tap-ware and shower accessories can be used. Heater can be connected to more than one point of use, making the in-Line a smart choice for, workplace, public service centres or wherever a hidden installation is required.
NOTE: Supplies hot water to one outlet at a time. Must be installed close to delivery point

GENERAL SPECIFICATIONS for BLUE WAVE 402
AVAILABLE
Code: INWHLINE 8kW / 230v
Code: INWHLINE 9.5kW / 230v
Single Outlet Vented Shower System
The Blue Wave Heater is installed at point to use (Inside shower cubicle) and includes full shower accessories. With built-in water flow control (tap) and temperature heat setting dial, the Blue Wave is smart choice for unlimited hot showers in your home, garage, sleep-out, holiday place or local club.

  • Fully temperature Stabilised
  • Overheat protection
  • Neons combine to indicate lower pressure
  • Temperature/flow selection with single turn value
  • Luxurious shower set including slide bar and self-cleaning shower head with 4 spray patterns

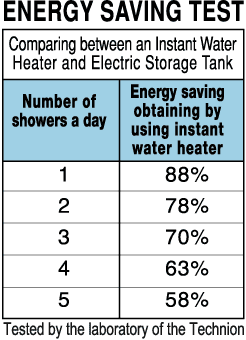

  • Green & Eco product - Energy & water saver

Instant Water Heaters must be hard wired direct to circuit board with an isolating switch. A residual current device (ELCB) should be incorporated into the circuit.
A qualified tradesperson must install the heater.
Heaters have a standard 12 month parts / or replacement warranty provided that the heater has been installed as per the instructions.

For further information please Free Phone 0800-101-201
